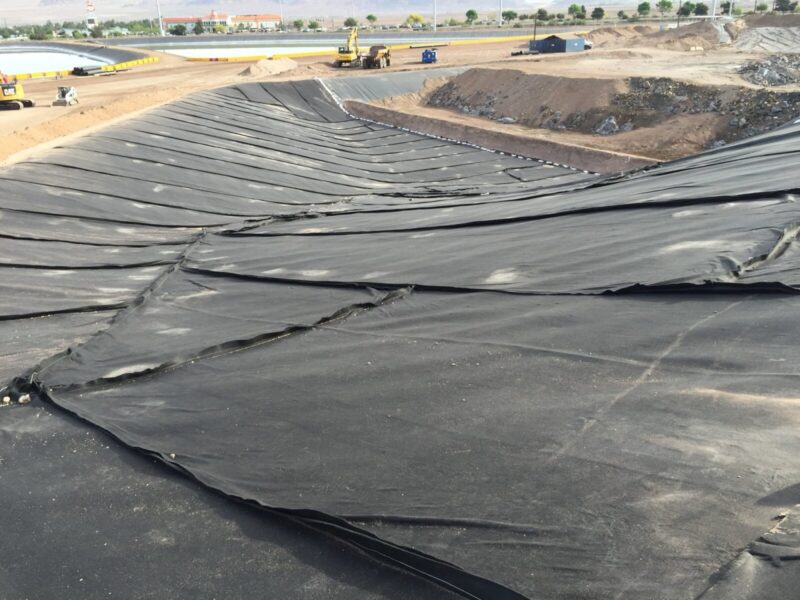

Geosynthetic liners provide an essential barrier in landfills, mining facilities, wastewater ponds, reservoirs, and other containment systems. Damage to a liner can create a potential leakage path, allowing liquids or contaminants to reach underlying soil and groundwater.
Defects can occur during manufacturing, transportation, installation, covering, or facility operation. A systematic inspection and testing process helps project teams locate damaged areas, complete suitable repairs, and verify that the liner can perform as intended.
How Damage to Geosynthetic Liners Is Located
Visual inspection is usually the first step in identifying liner damage. Inspectors examine exposed geomembrane surfaces for punctures, tears, scratches, wrinkles, poorly completed seams, and areas affected by construction equipment or displaced materials.
Learn more about geosynthetic liner and how this critical material may well require inspection and repairs. Understanding common defects and their causes allows project teams to select inspection methods that match the liner material, installation stage, and site conditions.
Visual checks alone may not reveal very small holes or defects concealed beneath other materials. Electrical leak location surveys can be used to identify discontinuities by applying an electrical potential across the liner and detecting changes associated with a leakage path.
The appropriate survey method depends on whether the geomembrane is exposed or covered and whether suitable conductive conditions exist above and below it. Surface preparation, moisture levels, liner configuration, and equipment calibration can all affect the accuracy of the results.
How Liner Defects Are Repaired
Once a defect is located, it should be clearly marked and documented before repair work begins. The surrounding area must be cleaned and prepared so that dirt, moisture, chemicals, and damaged material do not interfere with the repair.
Small punctures may be repaired with a patch made from compatible geomembrane material. Larger tears, heavily damaged sections, and defects close to seams may require a more extensive patch or replacement of the affected area.
Patches should extend beyond the damaged section by the distance required in the project specifications. Rounded corners are commonly used to reduce stress concentrations, and the repair is welded using an approved method suitable for the liner material.
Wrinkles and other installation problems may require cutting, repositioning, and reseaming rather than simply covering the area. Repair decisions should be made by qualified personnel and follow the approved construction quality assurance procedures.
How Completed Repairs Are Tested
Every completed repair should be inspected and tested before the liner is covered or placed into service. The purpose of testing is to confirm that the defect has been fully sealed and that the repair does not introduce another weak point.
Non-destructive methods can include vacuum box testing, air pressure testing, spark testing, or other procedures specified for the particular seam and geomembrane type. The selected method must be appropriate for the repair geometry and site conditions.
If a repair fails an initial test, the area should be marked, corrected, and tested again. This process continues until the repair satisfies the acceptance requirements. Cover materials should not be placed over an area until testing and documentation are complete.
Repair records should identify the defect location, damage type, repair method, date, responsible installer, and test result. Photographs and updated liner drawings provide additional traceability and help owners manage future inspections or maintenance.
Conclusion
Damaged geosynthetic liners are managed through careful inspection, accurate defect location, appropriate repair methods, and verification testing. Each step is necessary because even a small undetected opening can affect containment performance.
Finding and repairing defects before the liner is covered is far more efficient than addressing leakage after a facility begins operating. Qualified personnel, suitable testing methods, and complete records help protect the environment, project budget, and long-term reliability of the containment system.
